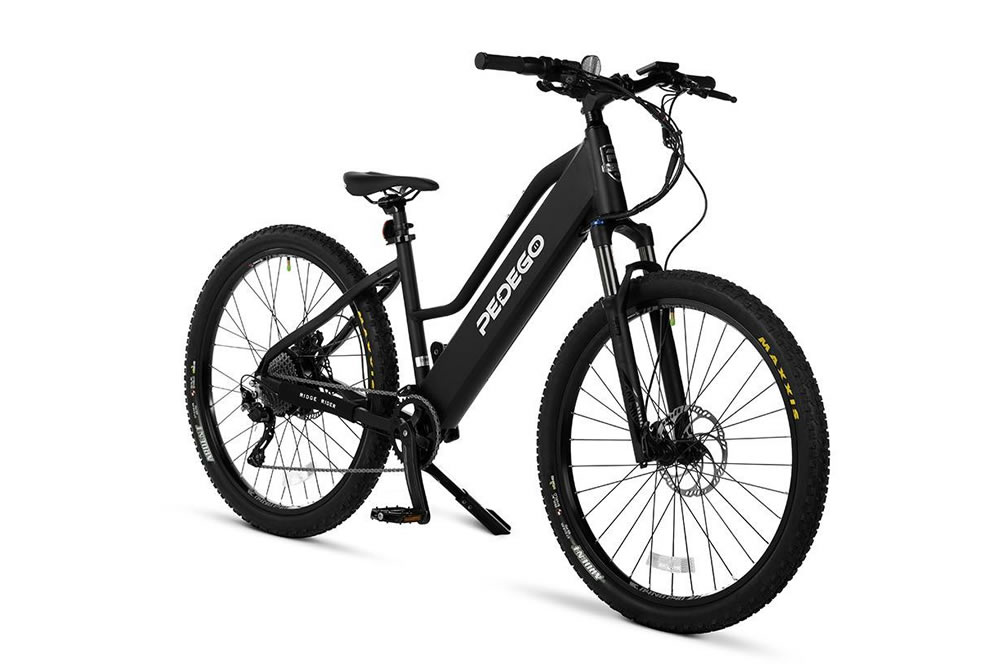

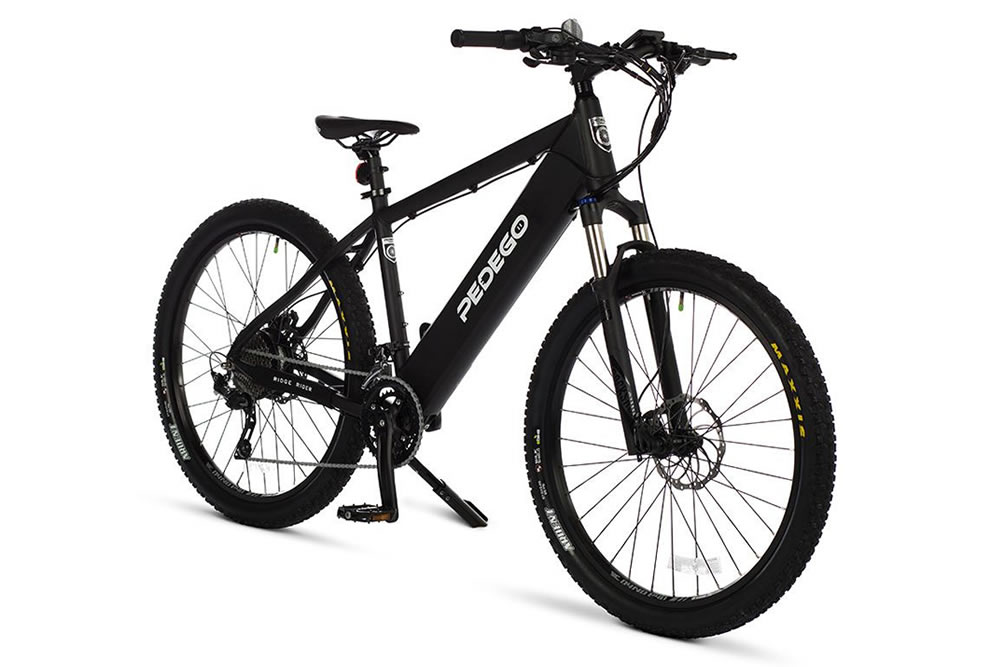

Pedego Ridge Rider Electric Mountain Bike

The Ridge Rider is ready for adventure. It gives you the freedom to venture off the beaten path and enjoy the great outdoors.

PREMIUM COMPONENTS

A Shimano SLX drivetrain provides easy pedaling and smooth shifting. Magura hydraulic disk brakes stop on a dime. And a RockShox suspension fork helps you maintain traction and ride comfortably over rough terrain.

RIDES LIKE A DREAM

Finely-tuned frame geometry makes you feel like you’re one with the bike! Popular 27.5” wheels are responsive and stable. And the battery is built into the frame for sporty handling.

BREATHTAKING PERFORMANCE

What really sets the Ridge Rider apart is its supercharged performance. It’s recognized worldwide as one of the most powerful electric bikes on the market, and it’s just plain fun and exciting to ride.

PEDEGO FEATURES

  • Shimano SLX – 20-speed drivetrain for easy pedaling and smooth shifting
  • RockShox Recon – Suspension fork with 120mm of travel helps you maintain traction
  • Magura MTE – Hydraulic disc brakes with 180mm rotors that can stop on a dime
  • Integrated BATTERY – A removable battery is integrated into the frame for sporty handling
  • PedalSense® – Twist-and-go throttle, 5 levels of pedal assist, and LCD display with USB charger.
  • 27.5” wheels – Sweet spot between responsive, lightweight 26” wheels and fast, stable 29” wheels.



SPECIFICATIONS

MOTOR
BLACK 48V BRUSHLESS GEARED REAR HUB MOTOR; 500 WATT NOMINAL POWER RATING; 45NM TORQUE; QUICK DISCONNECT CABLE WITH WATERPROOF CONNECTION
BATTERY
48 VOLT 14 AMP HOUR WITH PREMIUM LITHIUM ION 18650 CELLS; SMART BIKE
TECHNOLOGY WITH ESB APP INTEGRATION; AUTO SLEEP FUNCTION AND
BLUETOOTH CONNECTIVITY
CHARGER 3 AMP SMART CHARGER WITH INTERNAL FAN AND CHARGE INDICATOR LIGHT.
CONTROLLER
48 VOLT 18 AMP SINE WAVE CONTROLLER WITH CUSTOM PEDALSENSE® SOFTWARE AND WATERPROOF CONNECTIONS
THROTTLE TWIST AND GO THROTTLE WITH THREADED WATERPROOF CONNECTION
CASSETTE SHIMANO HG20 12-32T 7 SPEED CASSETTER WITH SHIMANO HG40 CHAIN
BOTTOM BRACKET BOTTOM BRACKET
THROTTLE TWIST THROTTLE VARIABLE SPEED CONTROL WITH JULET QUICK DISCONNECT FITTINGS
PEDALSENSE®
FREE RIDE MODE (NO POWER), FIVE LEVELS OF PEDAL ASSIST WITH THROTTLE OVERRIDE, AND THROTTLE ONLY MODE
DISPLAY
3.5” BACKLIT LCD SCREEN; 4 BUTTONS TO CONTROL ELECTRONICS, TOGGLE INFO
DISPLAYED, AND CUSTOMIZE SETTINGS; USB CHARGING PORT; WATERPROOF THREADED CONNECTION; CUSTOM PEDALSENSE® SOFTWARE
TOP SPEED 32 KM/H WITH MOTOR ASSISTANCE ONLY
FRONT DERAILLEUR
SHIMANO DEORE M600 10 SPEED; DOUBLE CHAINRING; HIGH CLAMP, DOWN SWING / TOP PULL; MODEL NO: FD-M618-H
REAR DERAILLEUR
GSHIMANO SLX M7000 10 SPEED; INTEGRATED CLUTCH FOR MAXIMUM CHAIN RETENTION; RIDER TUNED FOR SHARP AND SILKY SHIFTS; MODEL NO: RD-M7000-10-SGS
CASSETTE
SHIMANO DEORE M6000 10 SPEED HYPERGLIDE 11-36T; PRECISE AND CONSISTENT
SHIFTING PERFORMANCE; MODEL NO: CS-HG50-10
SHIFTERS
SHIMANO SLX M670 2×10 SPEED; DYNA-SYS WITH OPTICAL GEAR DISPLAY; MODEL
NO: SL-M670-L/R.
BOTTOM BRACKET
68MM x 127.5MM SQUARE TAPER SPINDLE WITH SEALED CARTRIDGE BEARINGS;
INTEGRATED TORQUE SENSOR
CHAIN 10 SPEED KMC X10E; RUSTBUSTER TREATMENT; 118 LINKS
CRANK
BLACK 3 PIECE CRANK WITH 4x104MM 44T/32T 3/32” CHAINRINGS; 175MM FORGED
ALUMINUM CRANK ARMS
PEDDALS
BLACK WELLGO ALUMINUM PLATFORM PEDAL; 9/16” SPINDLE; SEALED CARTRIDGE
BEARING/ POLYMER DU BUSHING; INTEGRATED PEDAL REFLECTORS
CALIPERS
MAGURA MT4E; 2 PISTON HYDRAULIC DISC BRAKE WITH EASY BLEED TECHNOLOGY, MAGURA ROYAL BLOOD (MINERAL OIL BASED)
LEVERS
MAGURA MT4E; 3 FINGER BALL END, ALUMINUM WITH MOTOR CUTOFF SWITCH FOR MAXIMUM SAFETY; CARBOTECTURE BODY, FLIP FLOP DESIGN
PADS
MAGURA 7.P PERFORMANCE; ORGANIC MATERIAL WITH STEEL BACKING PLATE; OFFER SAFETY TOGETHER WITH EXCELLENT PERFORMANCE IN ALL SITUATIONS
ROTORS
MAGURA STORM;180MM DIAMETER; STIFF, DURABLE DESIGN WITH A STRAIGHT, PREDICTABLEBRAKING SURFACE
FRAME
6061-T6 ALUMINUM ALLOY; 1 ⅛”-1 ½” TAPERED HEAD TUBE; INTEGRATED DOWNTUBE BATTERY MOUNT; INTERNAL / EXTERNAL CABLE AND WIRE ROUTING
FORK
ROCKSHOX RECON RL 27.5”; 100MM TRAVEL SOLO AIR SPRING; 1 ⅛”-1 ½” TAPERED STEERER TUBE; 15x100MM MAXLE LITE; COMPRESSION DAMPING ADJUSTMENT WITH HYDRAULIC LOCKOUT; REBOUND DAMPING ADJUSTMENT
HEADSET BLACK ZERO STACK SEMI-INTEGRATED; 1 ⅛” – 1 ½” THREADLESS TAPERED; ZS44/28.6 | ZS56/40
SEATPOST BLACK 30.9MM x 350MM RIGID SEATPOST WITH INTEGRATED SADDLE RAIL CLAMP
SADDLE
MTB STYLE WITH SINGLE DENSITY LIGHTWEIGHT FOAM; CHROMOLY RAILS; CENTER CHANNEL RELIEF; 270MM L x 144MM W.
RIMS
BLACK WEINMANN DYNO E40 27.5”; 26MM INTERNAL WIDTH; PINNED JOINT; FRONT: 32 HOLE; REAR 36 HOLE; DESIGNED FOR HEAVY LOADS OF E-BIKES
SPOKES
FRONT: BLACK 13 GAUGE HEAVY DUTY STAINLESS STEEL SPOKES WITH BRASS NIPPLES. REAR: BLACK 12 GAUGE HEAVY DUTY STAINLESS STEEL SPOKES WITH BRASS NIPPLES
GRIPS PEDEGO RUBBER LOCK ON GRIPS; DIAMOND GRIP PATTERN
HANDLEBAR
BLACK MTB RISER; ALUMINUM ALLOY; 31.8MM STEM CLAMP DIAMETER; 9° BACKSWEEP, 5° UPSWEEP; 20MM RISE; 720MM WIDTH
STEM
BLACK 3D FORGED ALUMINUM ALLOY; 80MM LENGTH; 7° RISE; 31.8MM HANDLEBAR CLAMP DIAMETER; 1 ⅛ (28.6MM) THREADLESS STEERER TUBE CLAMP DIAMETER
TIRES
MAXXIS ARDENT 27.5” x 2.25”; SINGLE RUBBER COMPOUND; 60 TPI CASING / FOLDING BEAD; SILK SHIELD PUNCTURE PROTECTION; eBIKE RATED; SCHRADER VALVE.
KICKSTAND
BLACK URSUS KAISER 69; ALUMINUM ALLOY CENTER KICKSTAND; ADJUSTABLE LENGTH COMPOSITE FOOT
TOOL KIT
CUSTOM PEDEGO TOOL KIT: 6” ADJUSTABLE WRENCH (UP TO 15MM), 12/13G SPOKE
WRENCH, T25 TORX WRENCH, 6MM HEX WRENCH, 5MM HEX WRENCH WITH #2 PHILLIPS SCREWDRIVER, 4MM HEX WRENCH.
WEIGHT (NO BATTERY) ONE SIZE: 21 KG
BATTERY 48V 14AH: 3.7 KG

Download the Ridge Rider Pedego Canada Fact Sheets
