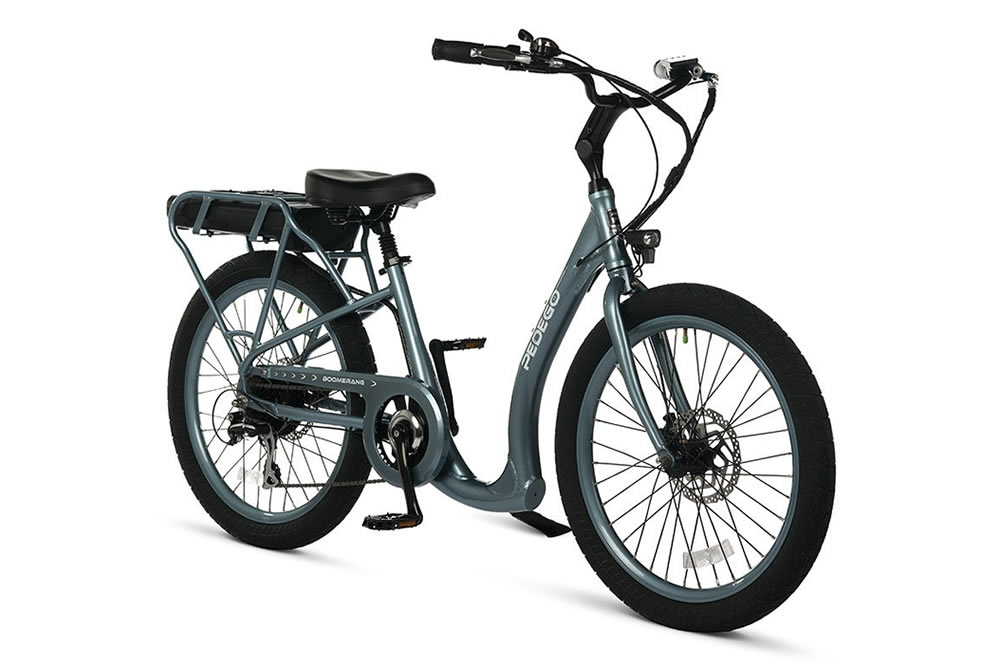

Pedego Boomerang Plus Electric Bicycle

The Pedego Boomerang Plus is the most accessible electric bike ever. The ultra low, 9” step thru frame makes riding fun and easy for more people.

PREMIUM COMPONENTS

A Shimano SLX drivetrain provides easy pedaling and smooth shifting. Magura hydraulic disk brakes stop on a dime. And a RockShox suspension fork helps you maintain traction and ride comfortably over rough terrain.

MADE FOR YOU

The first thing you notice when you ride a Boomerang is how comfortable you feel. You’ll swear it was made just for you – because it was! The most important part of any Pedego is the person riding it, and the Boomerang is built with only one thing in mind: YOU.

USER FRIENDLY

In addition to the ultra-low 9” step-thru frame for easy access, the Boomerang is fully loaded with user-friendly features that make riding even more fun. From the simple pleasure of a built-in bell, to innovative Smart Bike Technology including a Bluetooth connected smartphone app; we’ve thought of everything!



BREATHTAKING PERFORMANCE

In addition to the ultra-low 9” step-thru frame for easy access, the Boomerang is fully loaded with user-friendly features that make riding even more fun. From the simple pleasure of a built-in bell, to innovative Smart Bike Technology including a Bluetooth connected smartphone app; we’ve thought of everything!

PEDEGO FEATURES

  • Easy Access – Ultra-low 9” step-thru frame for easy access.
  • Comfy Seat– Soft saddle with a suspension seat post for extra cushioning where it counts.
  • Bright Lights – Built-in front and rear lights for your safety and convenience.
  • Ballon Tyres – Kevlar-belted tires help prevent flats and give you a nice, smooth ride
  • PedalSense® – Twist-and-go throttle, 5 levels of pedal assist, and LCD display with USB charger.
  • Full Coverage – Full coverage chain guard protects your clothing.



SPECIFICATIONS

MOTOR
BLACK 48V BRUSHLESS GEARED REAR HUB MOTOR; 500 WATT NOMINAL POWER RATING; 45NM TORQUE; QUICK DISCONNECT CABLE WITH WATERPROOF CONNECTION
BATTERY
48V 10AH OR 48V 15AH WITH PREMIUM LITHIUM ION 18650 CELLS; SMART
BIKE TECHNOLOGY WITH ESB APP INTEGRATION; AUTO SLEEP FUNCTION AND
BLUETOOTH CONNECTIVITY
CHARGER 3 AMP SMART CHARGER WITH INTERNAL FAN AND CHARGE INDICATOR LIGHT.
CONTROLLER
48 VOLT 18 AMP SINE WAVE CONTROLLER WITH CUSTOM PEDALSENSE® SOFTWARE AND WATERPROOF CONNECTIONS
THROTTLE TWIST AND GO THROTTLE WITH THREADED WATERPROOF CONNECTION
CASSETTE SHIMANO HG20 12-32T 7 SPEED CASSETTER WITH SHIMANO HG40 CHAIN
BOTTOM BRACKET BOTTOM BRACKET
THROTTLE TWIST THROTTLE VARIABLE SPEED CONTROL WITH JULET QUICK DISCONNECT FITTINGS
PEDALSENSE®
FREE RIDE MODE (NO POWER), FIVE LEVELS OF PEDAL ASSIST WITH THROTTLE OVERRIDE, AND THROTTLE ONLY MODE
DISPLAY
3.5” BACKLIT LCD SCREEN; 4 BUTTONS TO CONTROL ELECTRONICS, TOGGLE INFO
DISPLAYED, AND CUSTOMIZE SETTINGS; USB CHARGING PORT; WATERPROOF THREADED CONNECTION; CUSTOM PEDALSENSE® SOFTWARE
TOP SPEED 32 KM/H WITH MOTOR ASSISTANCE ONLY.
 DERAILLEUR
SHIMANO ACERA RD-M360 7-SPEED, FULL METAL CONSTRUCTION AND TEFLON
COATED BUSHINGS.
CASSETTE
SHIMANO HYPERGLIDE HG20 7 SPEED 12-32T; SMOOTH, LIGHT AND RELIABLE
SHIFTING PERFORMANCE.
SHIFTER
SHIMANO FT55 TOURNEY RIGHT HAND THUMB SHIFTER WITH EASY TO READ GEAR DISPLAY.
BOTTOM BRACKET
68MM x 137MM SQUARE TAPER SPINDLE WITH SEALED CARTRIDGE BEARINGS; STEEL CUPS AND BODY
CHAIN SHIMANO HG40 1/2”x3/32” 116 LINKS WITH INNER PLATE CHAMFERING
CRANK
BLACK 3 PIECE CRANK WITH 3/32” 44T INTEGRATED CHAINRING; 170MM FORGED
ALUMINUM CRANK ARMS.
PEDDALS
BLACK PEDEGO ALUMINUM PLATFORM PEDAL; 9/16” SPINDLE; POLYMER DU BUSHING; INTEGRATED PEDAL REFLECTORS
CALIPERS
AVID BB7 MOUNTAIN MECHANICAL DISC BRAKES; INTUITIVE EASY TO USE ADJUSTABILITY;
DUAL KNOB PAD ADJUSTMENT; TRI-ALIGN CALIPER POSITIONING SYSTEM; INTEGRATED CABLE STOP SPRING TENSION ADJUSTMENT
LEVERS
TEKTRO ERGONOMIC LEVER WITH RUBBER FINGER PADDING; INTEGRATED LEFT HAND BELL; INTEGRATED MOTOR CUT OFF SWITCH FOR MAXIMUM SAFETY
PADS
AVID METAL SINTERED WITH STEEL BACKING PLATE; OE QUALITY FOR NO-COMPROMISE DISC BRAKE PERFORMANCE
ROTORS
AVID G2 CLEAN SWEEP; 180MM DIAMETER; G2 DESIGN HELPS DIRT AND GRIME FROM ACCUMULATING ON BRAKE PADS
FRAME
6061-T6 ALUMINUM ALLOY; INTEGRATED REINFORCED REAR RACK FOR BATTERY AND STOR – AGE; INTERNAL CABLE AND WIRE ROUTING
FORK
26” RIGID HIGH TENSILE STEEL; 1 ⅛” THREADED STEERER TUBE; DISC BRAKE AND
FENDER MOUNTS.
HEADSET ZERO STACK SEMI-INTEGRATED 1 ⅛” THREADED; ZS44/28.6-26TPI | ZS44/30
SEATPOST
BLACK 27.2MM x 350MM COIL SPRUNG SUSPENSION SEATPOST WITH 40MM OF TRAVEL AND ADJUSTABLE PRELOAD
SADDLE
EXTRA WIDE CRUISER STYLE SADDLE WITH SOFT FOAM; REAR FACING PEDEGO LOGO; 265MM L x 265MM W.
RIMS 26” EXTRA STRENGTH DOUBLE WALL LIGHTWEIGHT ALUMINUM ALLOY; 12G X 36 HOLE.
SPOKES BLACK HEAVY DUTY 12 GAUGE STAINLESS STEEL SPOKES WITH BRASS NIPPLES
GRIPS
PEDEGO SYNTHETIC LEATHER GRIP WITH HAND STITCHING AND FOAM PADDING; COLOUR MATCHED BALLOON PACKAGE.
HANDLEBAR BLACK ERGONOMIC CITY STYLE; ALUMINUM ALLOY; 25.4MM CLAMP DIAMETER; 650MM WIDTH.
STEM
BLACK QUICK RELEASE ADJUSTABLE QUILL STYLE; 110MM LENGTH; 0-80 DEGREE ADJUSTABLE ANGLE; 25.4MM HANDLEBAR CLAMP DIAMETER; HEIGHT ADJUSTABLE 0-60MM; FOR 1 ⅛” (28.6MM) THREADED STEERER TUBE
TIRES
SCHWALBE FAT FRANK 26” x 2.35” WITH K-GUARD KEVLAR FLAT PROTECTION; SLIME INNER TUBE SEALANT; SCHRADER VALVE..
LIGHTS
FRONT: LED WITH ADJUSTABLE MOUNT 40 LUX (200 LUMENS); REAR: LED BUILT INTO BATTERY; BOTH POWERED BY MAIN BATTERY AND CONTROLLED BY DISPLAY.
KICKSTAND BLACK ALUMINUM ALLOY CENTER KICKSTAND; ADJUSTABLE LENGTH COMPOSITE FOOT.
TOOL KIT
CUSTOM PEDEGO TOOL KIT: 6” ADJUSTABLE WRENCH (UP TO 15MM), 12/13G SPOKE
WRENCH, T25 TORX WRENCH, 6MM HEX WRENCH, 5MM HEX WRENCH WITH #2 PHILLIPS SCREWDRIVER, 4MM HEX WRENCH.
WEIGHT (NO BATTERY) ONE SIZE: 24 KG
BATTERY 48V 15AH: 4.2 KG; 48V 10AH: 4 KG

Download the Boomerang Plus Pedego Canada Fact Sheet
