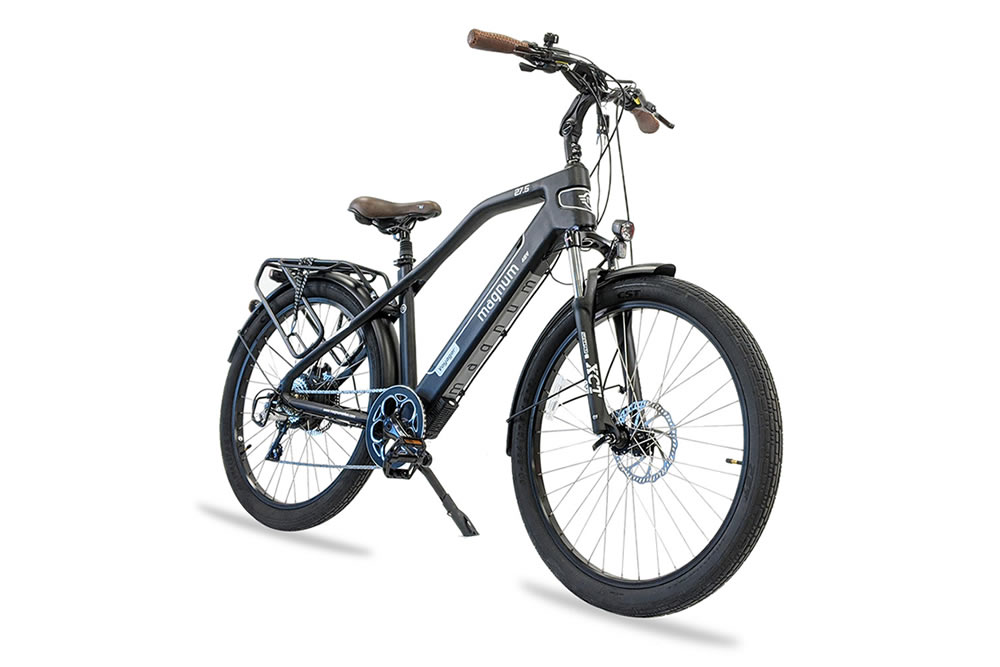

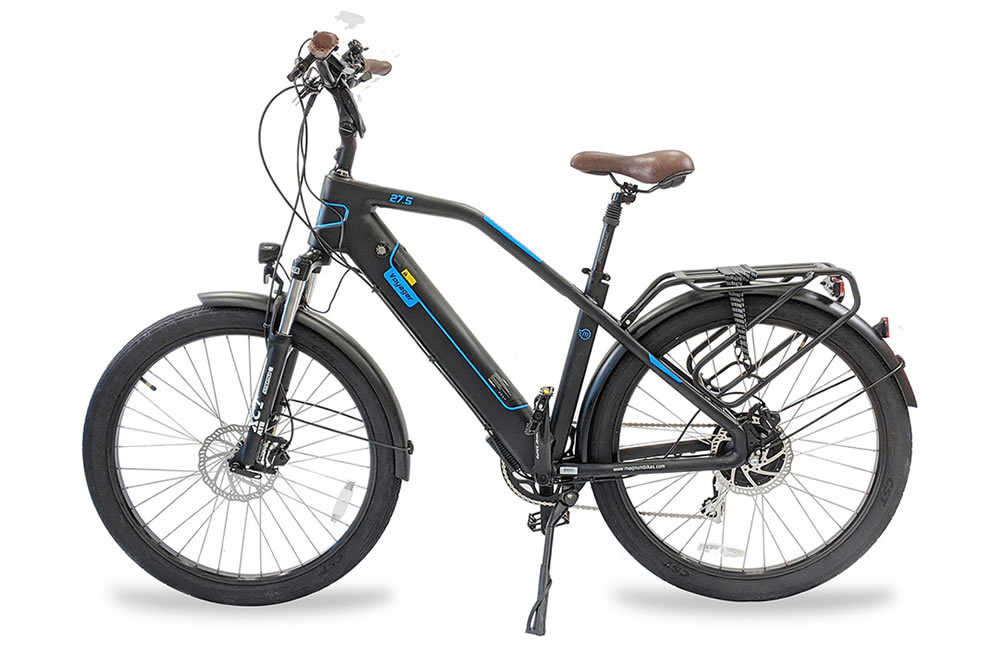

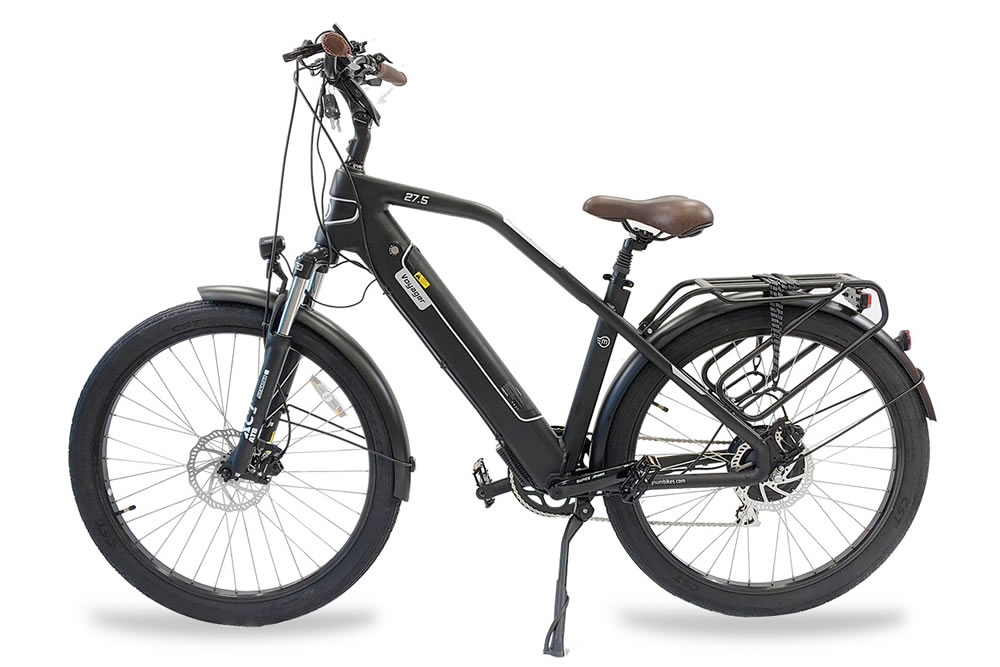

Magnum Voyager

The Magnum Voyager is a high step version of the Magnum Navigator. It has a powerful 500W 48V power system and the new fully integrated frame and battery design.

Specifications

ELECTRONIC DETAILS

  • Motor Type: Das-kit R4 Rear Geared Hub Motor
  • Motor Output: 48v 500w
  • Battery Voltage / Amp Hours / Watt Hours: 48v / 12ah / 624wh
  • Battery Chemistry: Lithium Nickel Cobalt Manganese (Li-ncm)
  • Estimated Charge Time: 6.5 Hrs
  • Estimated Min And Max Range: 50 To 80 KM (Depending On Riding Style, Terrain, Rider Weight and Peddle Assist Level.)
  • Display Type: Fixed, Backlit, Monochrome Lcd
  • Display Records: Power Output Indicator (6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage
  • Drive Modes: Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
  • Top Speed: 40 km With Pedal Assist, 32 km Throttle Only

BICYCLE DETAILS

  • Frame Type: High Step with fully integrated battery
  • Frame Color: Black Blue, Black Silver
  • Frame Material: Aluminum Alloy
  • Fork Details: Sr Suntour XCT ATB Spring Suspension, 100mm, 80mm
  • Gearing Details: 8 Speed
  • Shifter Details: Shimano Shifter
  • Cranks: Shimano
  • Stem: Promax, Aluminum Alloy
  • Brake Details: Tektro Hydraulic Disc Brakes
  • Grips: Velo Flat Rubber
  • Saddle: Promax
  • Seatpost: Promax
  • Rims: Aluminum Alloy
  • Tires: CST Semi-Slick
  • Wheel Size: 27.5″ X 2.35
