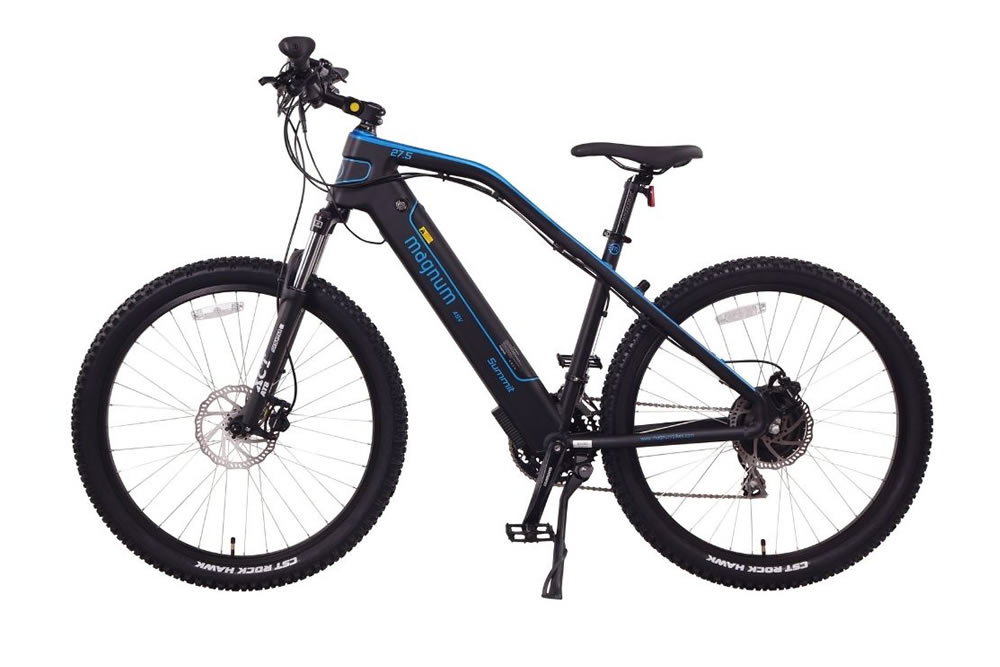

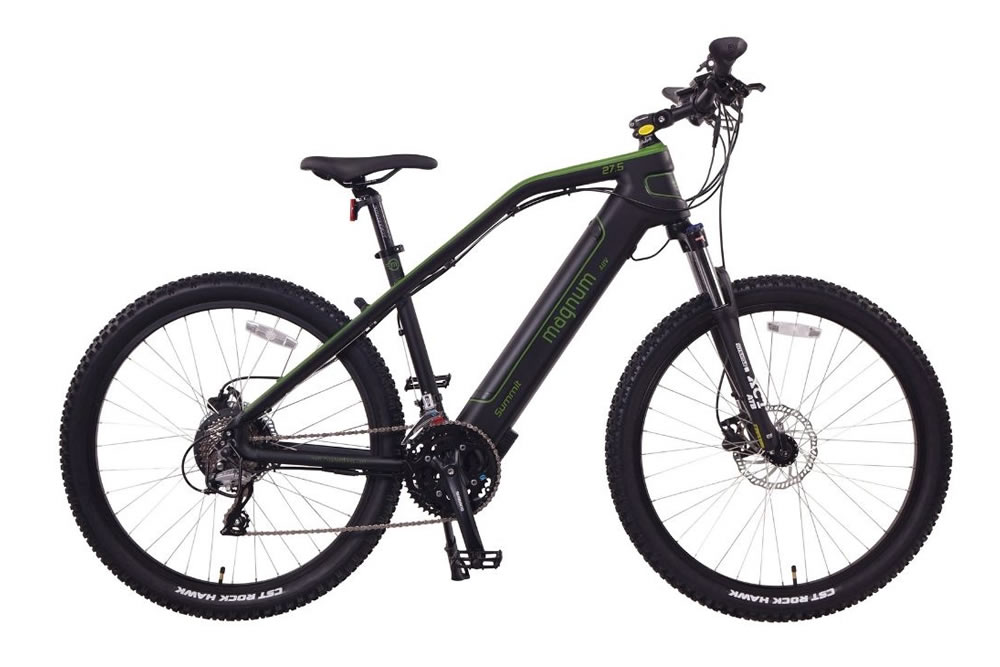

Magnum Summit

The Summit is the newest trail/mountain e-bike in the Magnum product line. It’s stand out features are the fully integrated battery for a sleek design and a range of accent colors span the top of the down tube. 48v, 500w power system with max speed of 40km/hr with pedal assist and 32 km/hr throttle only. The sleek design and high-end components will turn heads

Specifications

DESCRIPTION

  • Model: Magnum Summit
  • Body Position: Forward
  • Frame Color: Black Blue, Black Green, Black Orange, Black Sand
  • Electric Bike Class: Throttle On-demand (Class 2), Speed Pedelec (Class 3) *Throttle can be removed for Class 1
  • Warranty: 1 Year Comprehensive
  • Max Load: 265lbs

ELECTRONIC DETAILS

  • Motor Type: Das-kit R4 Rear Geared Hub Motor
  • Motor Output: 48v 500w
  • Battery Voltage / Amp Hours / Watt Hours: 48v / 13ah / 624wh
  • Battery Chemistry: Lithium Nickel Cobalt Manganese (Li-ncm)
  • Estimated Charge Time: 6.5 Hrs
  • Estimated Min And Max Range: 48-96km (Depending On Riding Style, Terrain, Rider Weight and Peddle Assist Level.)
  • Display Type: Fixed, Backlit, Monochrome Lcd
  • Display Records: Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage
  • Drive Modes: Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
  • Top Speed: 40km/hr With Pedal Assist, 32 km/hr Throttle Only

BICYCLE DETAILS

  • Frame Type: High Step with fully integrated battery
  • Frame Material: Aluminum Alloy
  • Fork Details: Sr Suntour XCT ATB Spring Suspension, 100mm, 80mm
  • Gearing Details: 24 Speed 3×8
  • Shifter Details: Shimano Shifter
  • Cranks: Shimano
  • Stem: Promax, Aluminum Alloy
  • Brake Details: Tektro Hydraulic Disc Brakes
  • Grips: Velo Flat Rubber
  • Saddle: Promax
  • Seatpost / Seatpost Dimensions: Promax
  • Rims: Aluminum Alloy
  • Tires: CST Rock Hawk
  • Wheel Size: 27.5″ (29″) X 2.4
