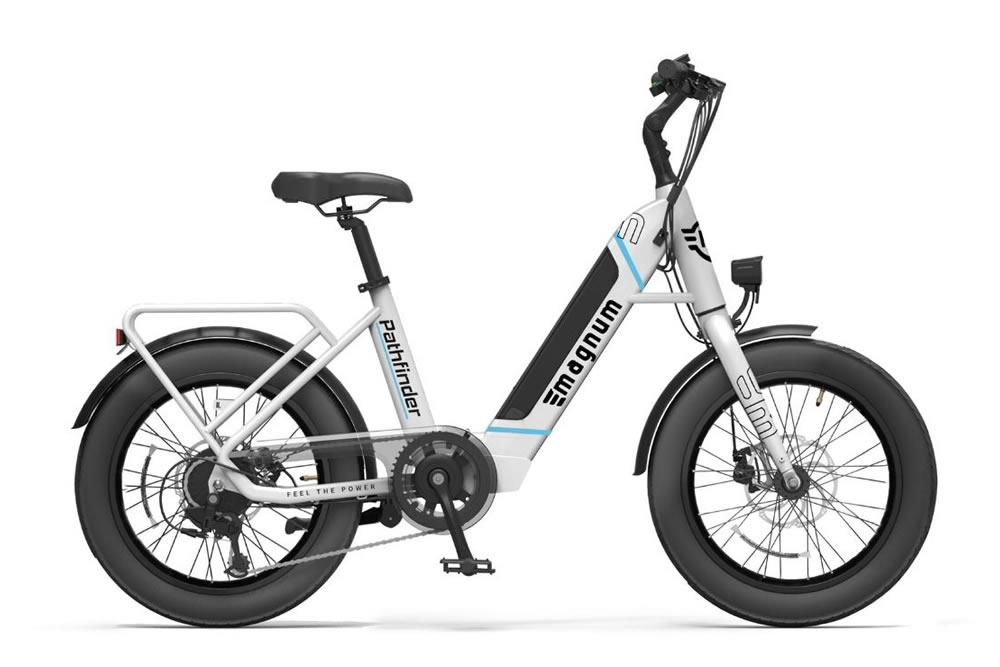

Magnum Pathfinder-500w

The Magnum Pathfinder  500W  has a compact frame with a fully integrated battery. Its standout feature in the Magnum lineup is it’s 20″ fat tires.The power system is a robust 500W, 48V, with a 13Ah battery to ensure you have your adventures covered, you just need to explore!

Find Your Magnum. Find Your Path.

Specifications

DESCRIPTION

  • Model: Magnum Pathfinder Compact 20″ Fat Tire E-bike
  • Body Position: Upright
  • Warranty: 1 Year Comprehensive
  • Max Load: 265lbs

ELECTRONIC DETAILS

  • Motor Type: Rear Geared Hub Motor
  • Motor Output: 48v 500w
  • Battery Voltage / Amp Hours / Watt Hours: 48v / 13ah /624wh
  • Battery Chemistry: Lithium Nickel Cobalt Manganese (Li-ncm)
  • Estimated Charge Time: 4-4.5 Hrs
  • Estimated Min And Max Range: 48-80KM (Depending On Riding Style, Terrain, Rider Weight, and Pedal Assist Level.)
  • Display Type: Bigstone H102 Display
  • Display Readouts: Speed (mph or kmh), Frontlight on/off, Assist Level 0-3, Battery Level, Odometer, Trip Distance, Range (estimated remaining mileage)
  • Drive Modes: Pedal Assist, Twist Throttle
  • Max Speed: 40 Km/hr
  • Lights: Integrated Front and Rear Light controlled by the display (power on/off)

BICYCLE DETAILS

  • Total Weight: 50lbs
  • Battery Weight: 8lbs
  • Frame Type: Low Step
  • Fork Details: Fixed Alloy
  • Gearing Details: Shimano Altus 7 Speed
  • Shifter Details: Shimano Altus
  • Stem: Adjustable Alloy
  • Brake Details: Tektro hydraulic disc brakes
  • Saddle: VELO saddle
  • Seatpost: Rigid
  • Rack / Fenders: Rear rack, front and rear fenders
  • Tires: Innova 20″ fat tire
  • Wheel Size: 20″ x 3″
